APH

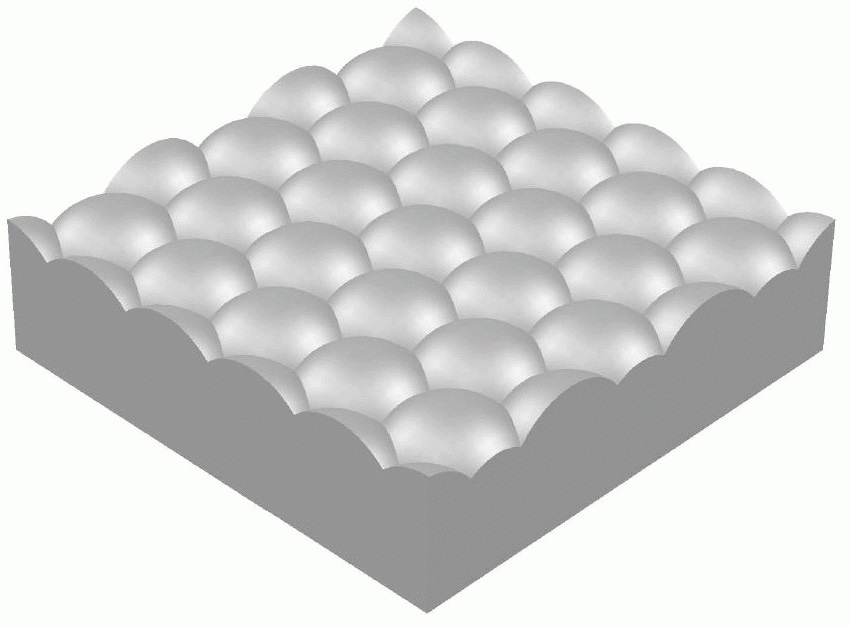

Array Positive (convex) Hexagonal – APH
                                        Example of a designation:           APH – a –
Py – Rz
where:




a – material
Py – pitch in micron
Rz – radius of curvature  in mm
(ARz - aspherical radius of curvature)
Applied materials are coded as follow:
Q – fused silica
GB – glass BK7
GT – glass S-TiH53 or S-TiH10
GL – glass S-LaH60
G – glass other type
P – plastic
P(G) – polymer lens on glass substrate
*The exact type of optical materials is underlined in the drawing.
*The exact type of  aspherical coefficients is underlined in the drawing.


[aµs] manufactures the arrays with any pitch within a 10 µm – 4000 µm range and with any correlatable radius of curvature.
Arrays can be available as monolithic 2-side units with thickness from 2 mm to 10 mm.
Alignment preciseness of the lenslet optical axis on both sides is not worse than ±2 µm

Example:

Pitch is the shortest distance between optical axis of two neighbouring lenses. In case of circular lenses with orthogonal arrangement, the lens diameter is given in brackets.
APH-Q-P1000(D600)-R3
array positive hexagonal, fused silica, pitch 1 mm, lens diameter 600 micron, radius of curvature 3 mm
APH-Q-P1000-R3
array positive hexagonal, fused silica, pitch 1 mm, radius of curvature 3 mm

Available products
Please feel free to inquire for
optimization of the available
MLAs or for your custom
taylored product
APH-P-P30-R0.023

APH-Q-P44-AR0.049

APH-Q-P60(D30)-R0.019

APH-Q-P60-R0.110

APH-Q-P161.5-R0.5

APH-Q-P161.5-R2.05

APH-Q-P200-R0.367

APH-Q-P200-R2.0

APH-Q-P247.5-R14

APH-P(GB)-P250-R0.3

APH-Q-P250-R1

APH-Q-P271.9-R0.337

APH-P(G)-P250-R300

APH-P(GB)-P250-R0,3xLBH-P(GB)-DV30

APH-P(GB)-P280-R0.357

APH-P(GB)-P280-R0.520

APH-Q-P300-R0.477

APH-Q-P300-R1

APH-GT-P330-AR0.82

APH-Q-P330-R10.7

APH-Q-P400-R1.57

APH-Q-P400-R1.73

APH-Q-P443-AR0.844

APH-Q-P480-R4.7

APH-Q-P500-R76.05

APH-Q-P507-R0.85

APH-Q-P537-R1.25

APH-Q-P513-R1.820

APH-Q-P565(D565)-AR0.923

APH-GT-P600-R1.2

APH-Q-P760-R1.25

APH-Q-P800-AR2.045

APH-GT-P866-AR2.0

APH-Q-P866-R8.4

APH-Q-P866-R16.5

APH-Q-P866-R19.3

APH-Q-P866-R30

APH-GT-P1000-R1.34

APH-GT-P1000-R1.93

APH-Q-P1000-R3.63

APH-GT-P1300-R2.74

APH-GT-P1300-AR4.3

APH-GT-P1500-R2

APH-GB-P1500-R2

APH-Q-P1500(D1416)-R2.3

APH-GT-P1500-R12.42

APH-Q-P1590(1390)-AR1.103

APH-Q-P1600-R60

APH-Q-P2000-AR1.1

APH-GB-P2000(D1600)-AR2.62

APH-Q-P2000-AR6.354
